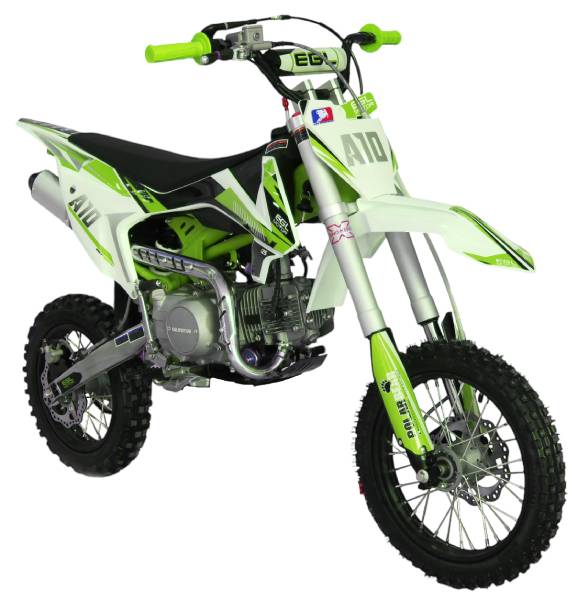

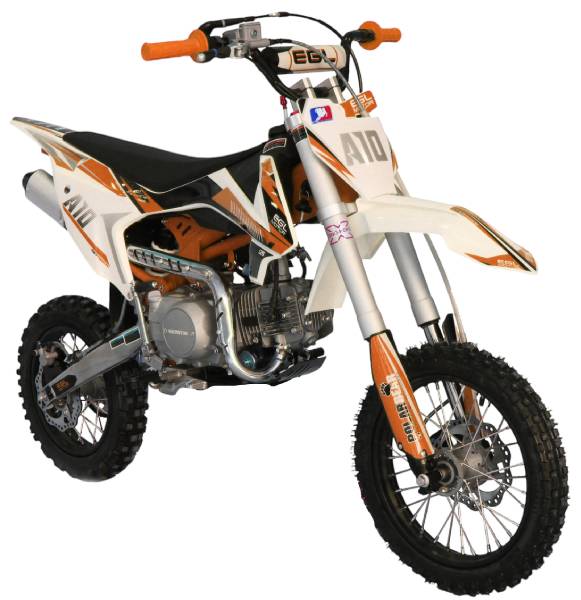

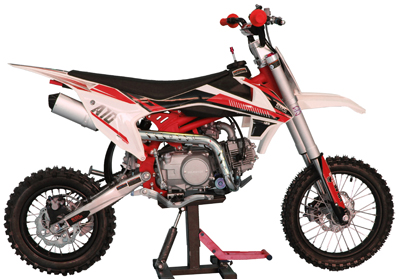

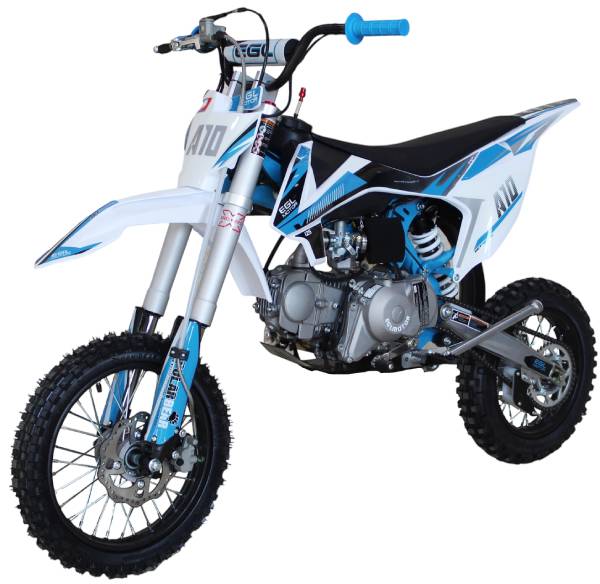

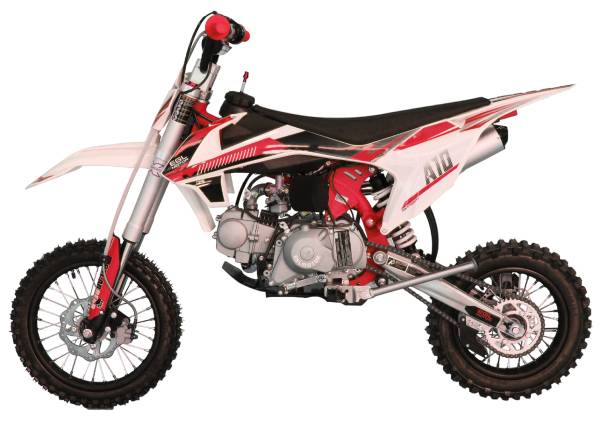

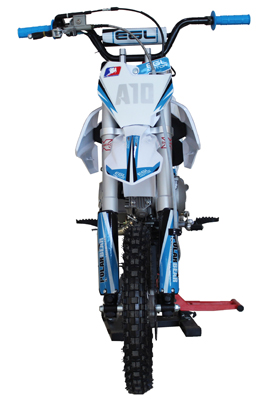

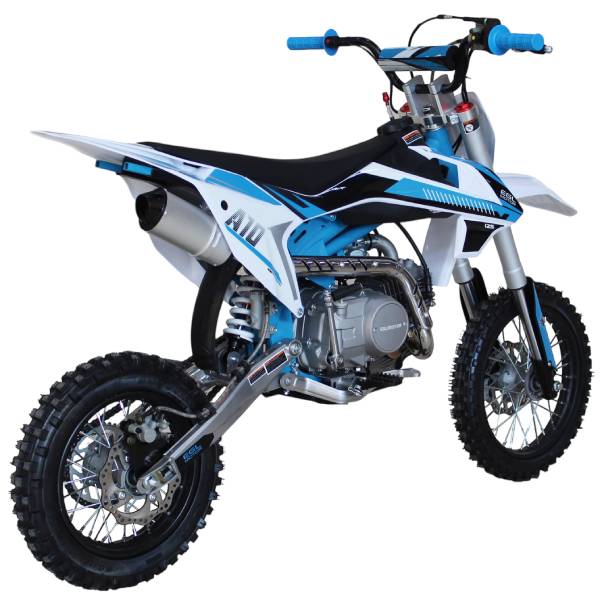

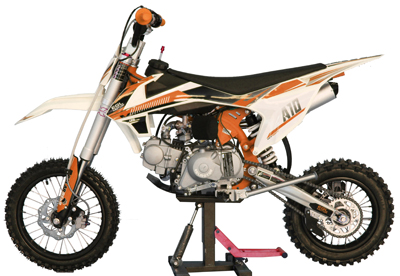

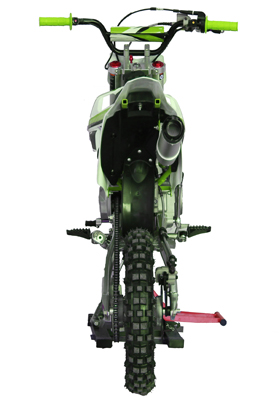

A-10

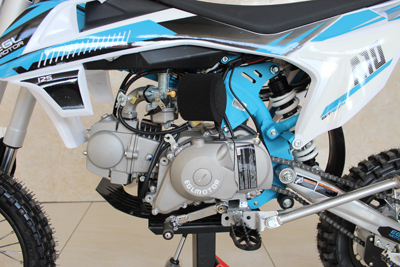

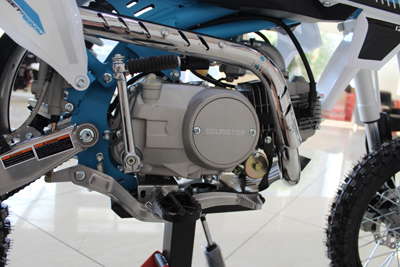

Engine : 125cc, 4 stroke, Single Cylinder
Transmission : 4-Speed,Semi Auto
Cooling : Oil-Cooled
Ignition System : CDI
Starting System : Electric/Kick Start
Battery: 12V,4Ah

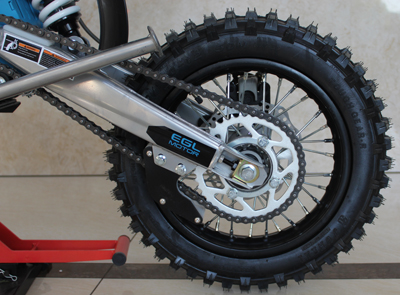

Final Drive : Chain Drive

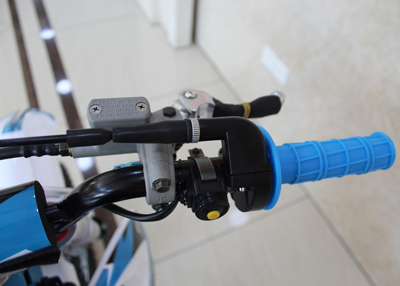

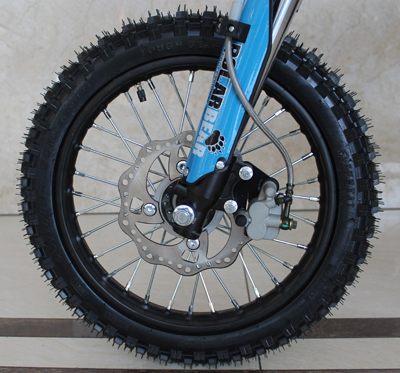

F/Brake : Hydraulic Disc (Hand)
R/Brake : Hydraulic Disc (Foot)
Fuel Capacity :4.5L
Max Speed : 35-45 MPH
Front Tire : 60/100-14 Knobby Tire
Rear Tire: 80/100-12 Knobby Tire
Front Suspension: L=735mm up side down, not adjustable
Rear Suspension: L=280mm, not adjustable
Max Power[Kw/r/m]: (6.3(1±10%))/(7500(1±5%))
Max Torque[N.m/r/m]: 8.8(1±10%))/(5500(1±5%))
Compression Ratio: 9.0:1
Seat Height: 31.1"
Ground Clearance: 11.8"
Max Load: 185 LBS
Weight: G.W.166LBS, N.W.144LBS
Bore & Stroke: 54X54
Wheelbase: 1220±3mm
Carton Dimensions: L*W*H*: 59"x17"x31"
Color: Blue, Red, Orange, Green
