Engine Type: 169CC, Single Cylinder, 4-Stroke
Transmission: Automatic With Reverse
Cooling System: Air Cooled
Ignition System: CDI
Starting System: Electric /Kicks Start
Gearing: CVT+ Reverse
Final Drive: Chain Drive
Brake Front: Drum Brake (Hand)
Brake Rear: Hydraulic Disc (Foot)
Fuel Tank Capacity: 7.8L
Tire Front/Rear: 23x7-10/22x10-10
Front Suspension : Double A-Arm
Rear Suspension : Single Swing Arm
Engine Oil Capacity: 900 ML
Carburetor No: PD24
Spark Plug No: D7TC
Max Speed : 45-55MPH
Max Load : 180LBS
Bore*Stroke (mm): 57.4 x 57.8 mm
Compression Ratio: 9.5 : 1
Max Horsepower : 6.0KW/8000r/min
Max Torque: 7.8 / 6500 (N.m/R/Min)
Weight: G.W. / 446 LBS/ N.W 420 LBS
Carton Dimensions: L*W*H: 60” x 32”x 29”

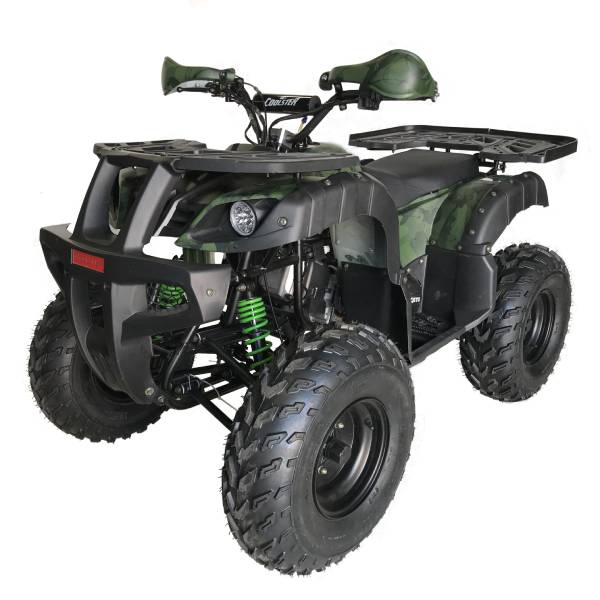

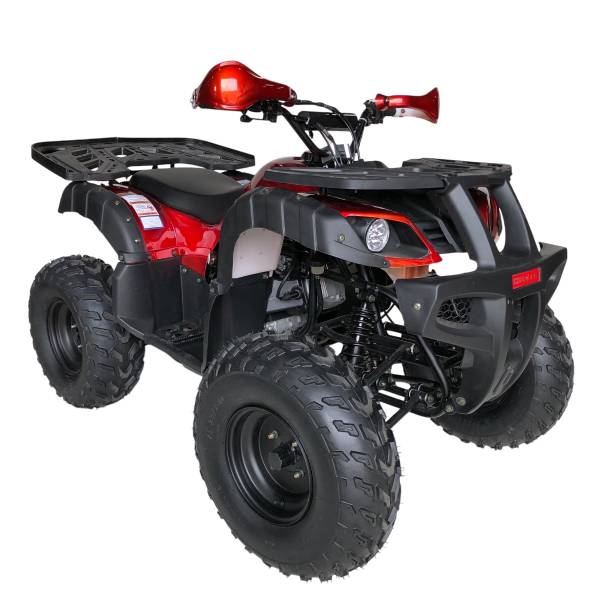

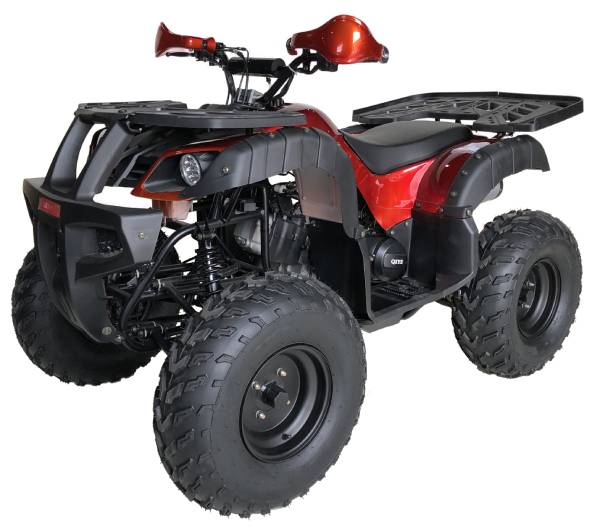

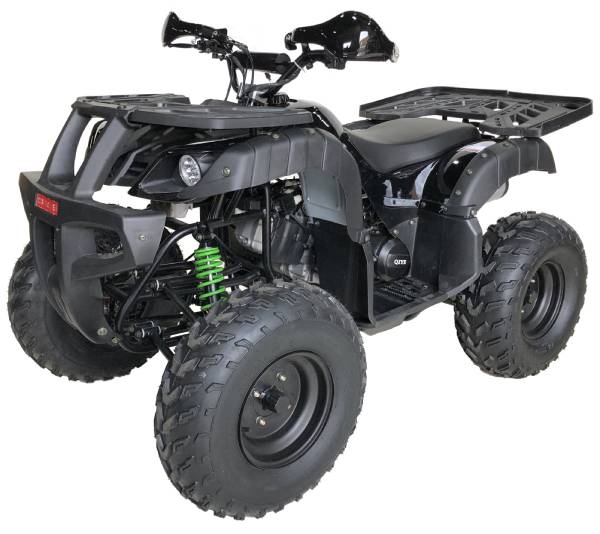

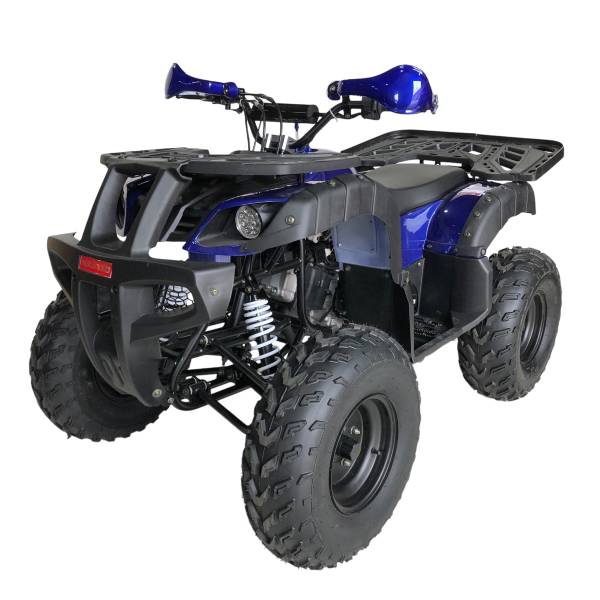

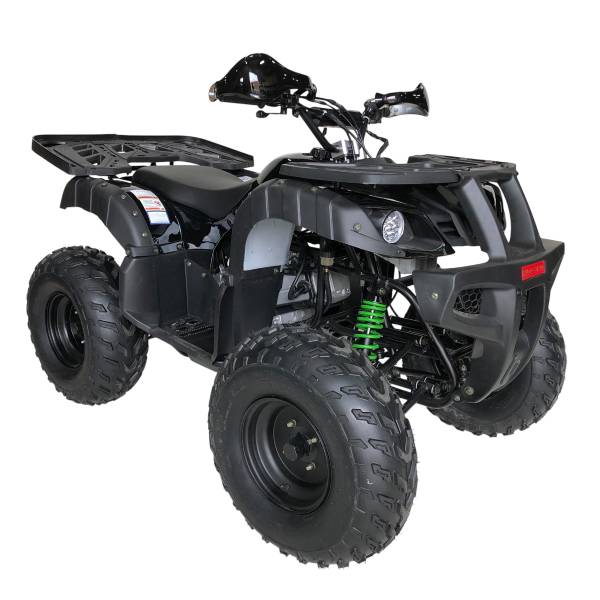

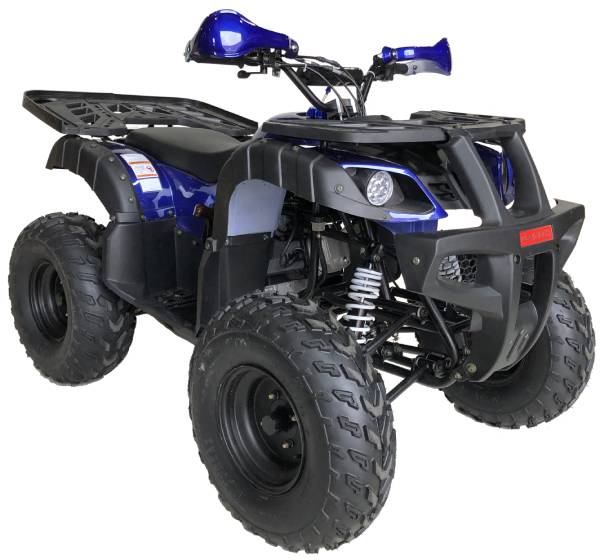

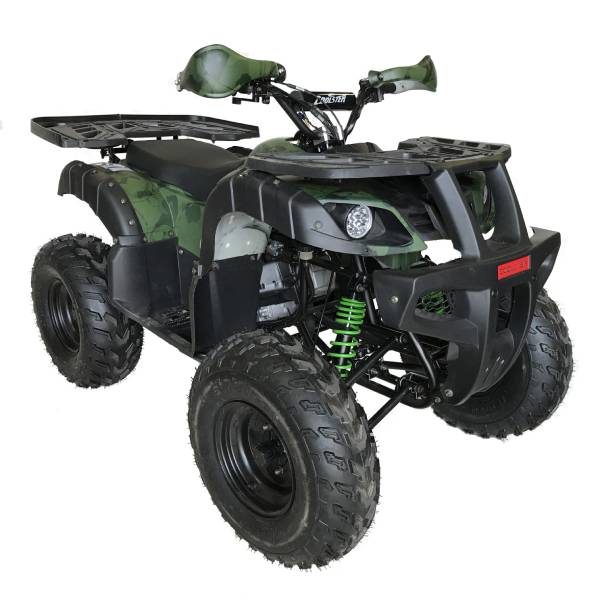

Colors : Metallic Red, Blue, Black, Army Green, Army Black
